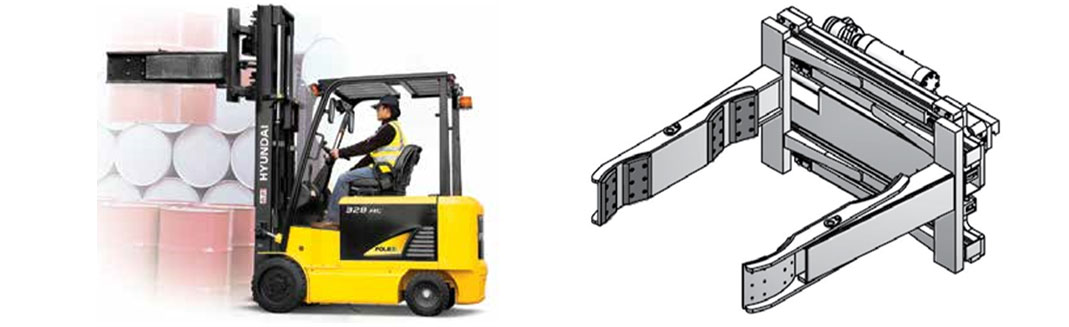

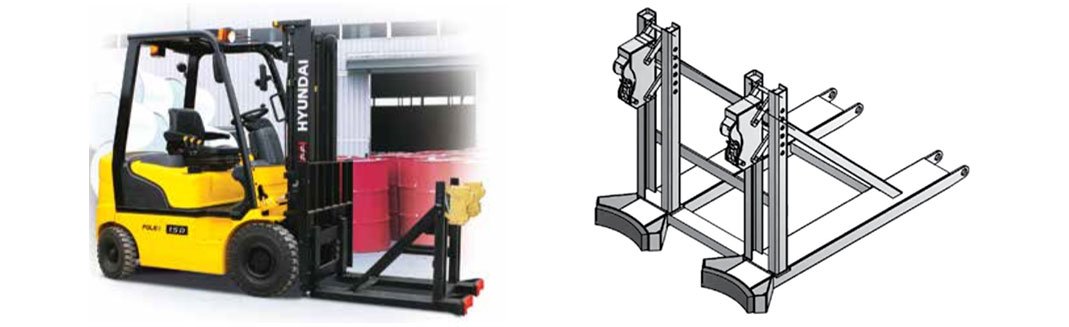

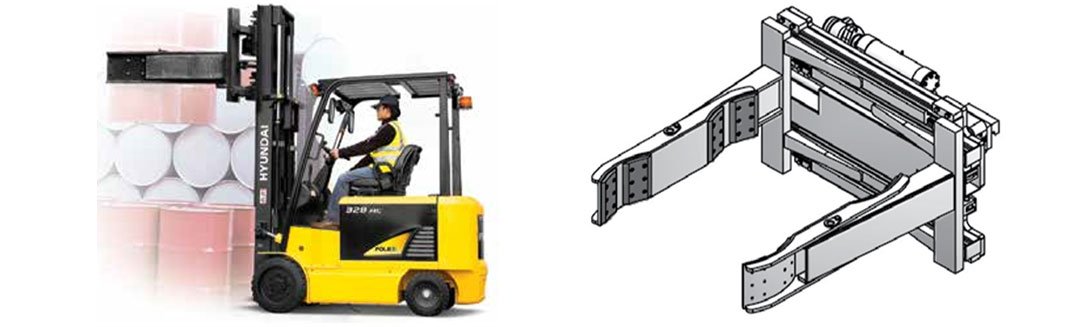

Drum Clamp
Pallet Invert Load Push
  • Functions

    The arms shapen drums operate on both sides. The clamp is capable of handling one, two or four drums simultaneously dependent upon application.

  • Application

    Handling cargos of drums or similar cylindrical containers. (e.g., petrochemical products, paints, inks and adhesives)

  • Type

    Rotating

  • Specifications (Standard type)
Applicable forklift truck(ton) Widening width (mm) Arm(mm) Clamp Stroke(O) Clamping Time(sec) No. of drums Weight (kg)
Height Length Left Right Open Close
2.2 / 3.0 450 ~ 1,650 215 1,000 600 600 3.5 3.0 4 575
3.5 ~ 4 680 ~ 2,200 540 1,200 760 760 4.5 4.5 4 960
4.5 680 ~ 2,200 540 1,200 760 760 4.5 4.5 4 960

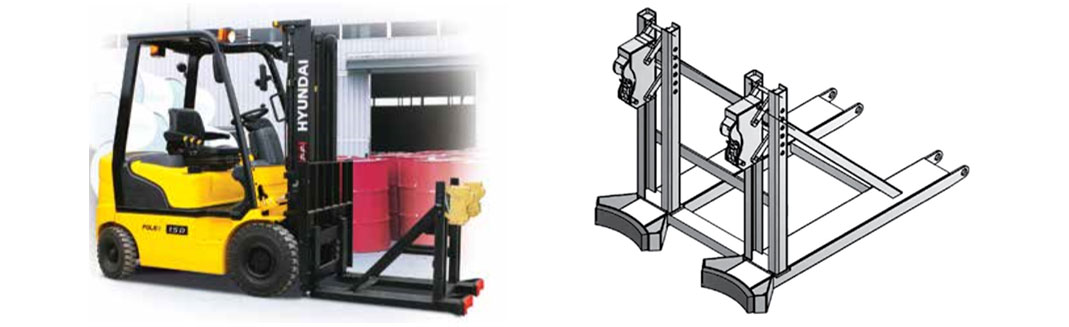

Drum Picker
drum picker attachment
  • Functions

    Standing drums are clamped by the teeth of the picker shaped eagle’s claws, and then transported, or loaded/unloaded. The picker is connected by a pin, and easy of mounting and removing. You can use the forklift truck for its own purpose after removing.

  • Application

    Handling cargos of drums or similar cylindrical containers. (e.g., petrochemical products, paints, inks and adhesives)

  • Type

    One or two drums, shift type.

  • Specifications (Standard type)
    Applicable forklift truck(ton) Fork Length(mm) Clearance between forks(mm) No. of drums Weight(kg)
    1.5 ~ 2.5 Less than 1,200 585 1 or 2 75
    2.0 ~ 3.0 Less than 1,200 585 1 or 2 80
    3.5 ~ 4.5 Less than 1,200 585 1 or 2 85
    *The length of the drum picker adjustable dependent upon the specifications of the

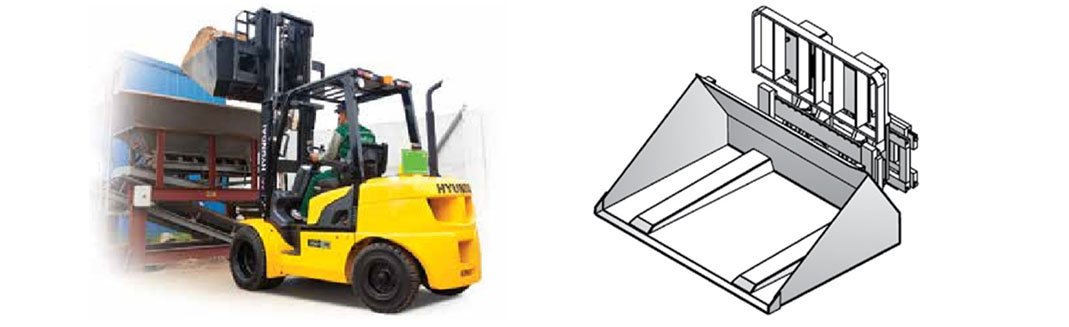

Hinged Bucket
hinged bucket
  • Functions

    A bucket is added to the hinged fork, and forklift truck can operate like a small loader. The bucket is connected by a pin, and easy of mounting and removing. You can use the forklift truck for its own purpose after removing the bucket.

  • Application

    Transportation of granular cargos such as chemical fertilizer, sand, feeds, coal and grain, and unloading the cargo. (chemicals factory, open-air yard of sand, feeds factory or grain unloading yard)

  • Type

    Standard type, shift type

  • Specifications (Standard type)
    Applicable forklift truck(ton) Loading capacity(kg) Bucket width (mm) Dumping angle(degree) Bucket capacity(㎡) Weight (kg)
    Top Bottom Horizontal stacking Vertical stacking
    2.0 / 2.5 1,230 / 1,604 1,550 33 42 0.6 0.7 588
    3.0 1,910 1,550 33 42 0.6 0.7 624
    3.5 2,372 / 2,770 1,850 33 42 0.9 1.0 880
    4.0 / 4.5 2,997 1,850 33 42 0.9 1.0 880
    5.0 / 7.0 2,900 / 4,313 2,100 33 42 1.0 1.1 1,230

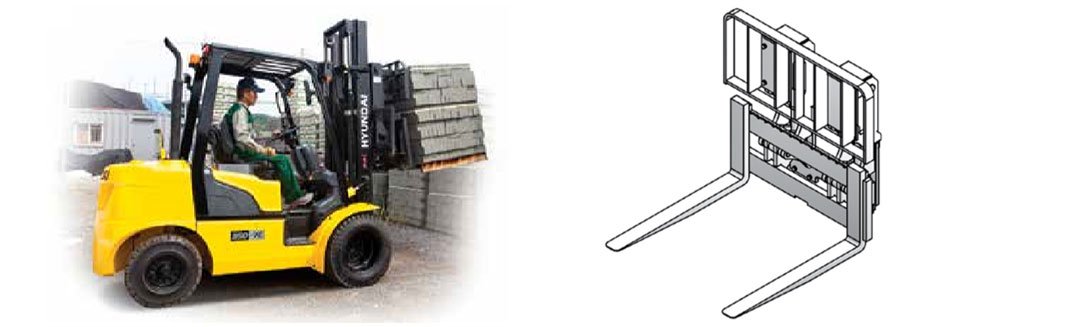

Hinged Fork

hinged fork







  • Functions

    The fork is dumped up and down for transporting and loading cargos of cylindrical shape.

  • Application

    Transportation and loading of small lumber, pipe and brick.

  • Type

    Standard type, shift type

  • Specifications (Standard type)



Applicable
forklift truck(ton)		Loading capacity(kg)Dumping angle(degree)Widening width of
external fork(mm)		Weight
(kg)
TopBottom
2.2 / 3.01,334 / 1,70833421,070356
3.0/ 3.32,01633421,100392
3.5 / 4.02,516/2,91433421,650576
4.53,13733421,650576
5.0 / 7.03,093 / 4,50633422,050854

Load Stabilizer

load stabilizer







  • Functions

    The fork is dumped up and down for transporting and loading cargos of cylindrical shape.

  • Application

    Transportation and loading of small lumber, pipe and brick.

  • Type

    Standard type, shift type

  • Specifications (Standard type)



Applicable
forklift truck(ton)		Loading capacity(kg)Dumping angle(degree)Widening width of
external fork(mm)		Weight
(kg)
TopBottom
2.2 / 3.01,334 / 1,70833421,070356
3.0/ 3.32,01633421,100392
3.5 / 4.02,516/2,91433421,650576
4.53,13733421,650576
5.0 / 7.03,093 / 4,50633422,050854

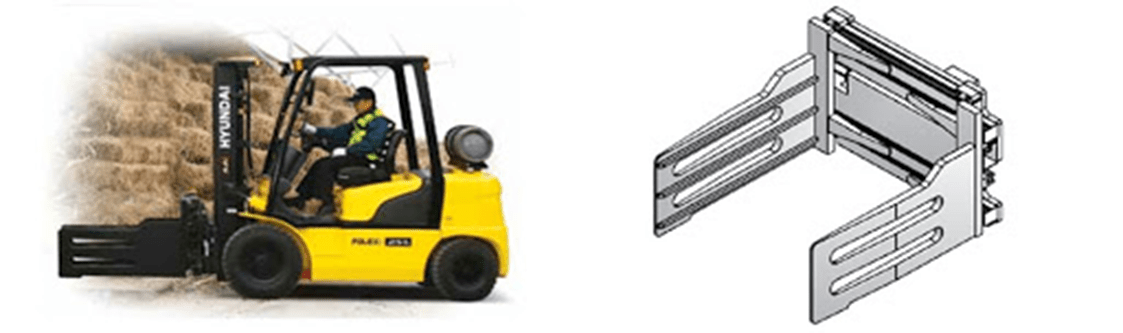

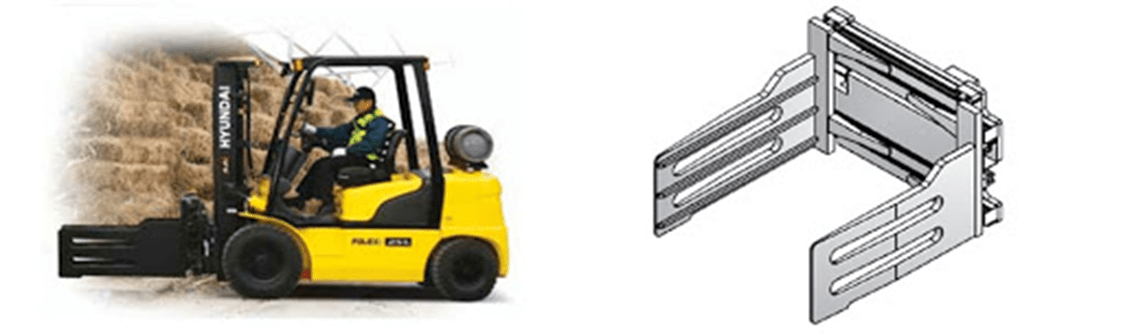

Bale Clamp

bale-clamp-forklift





  • Functions

    The arms of various sizes are attached, and clamp cargo on both sides. It is allowed to mount rubber pads on the arms for protecting the surface of cargo.

  • Application

    Handling raw cotton, wool and pulp, and appropriate for unloading containers, for example, at harbor.

  • Type

    Synchronize, independent, shift type.

  • Specifications (Standard type)

Applicable
forklift truck(ton)		Loading capacity(kg)Opening range (mm)Pressing plate size
width x length (mm)		Weight(kg)
1.5 / 1.8980 / 1,230600 ~ 1,8001,000 X 425485
2.0 / 2.51,375 / 1,850600 ~ 1,8001,000 X 425530
3.02,250600 ~ 1,8001,000 X 425600
3.5 / 4.02,500600 ~ 1,8001,200 X 425770
4.53,290800 ~ 2,0001,200 X 425830

*The opening range and the pressing plate size are adjustable

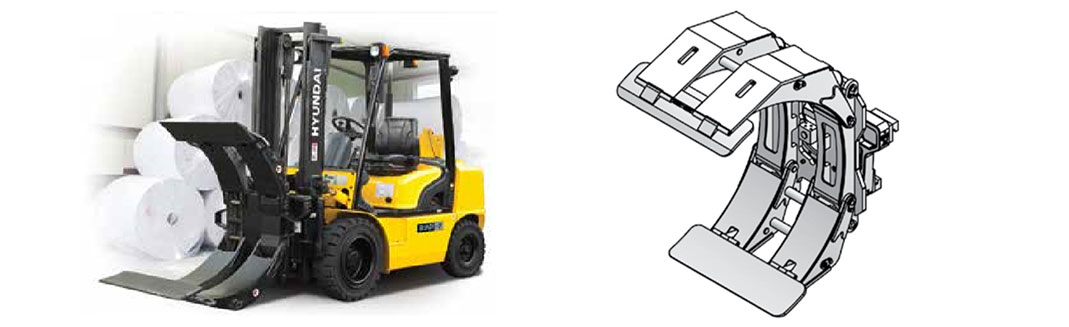

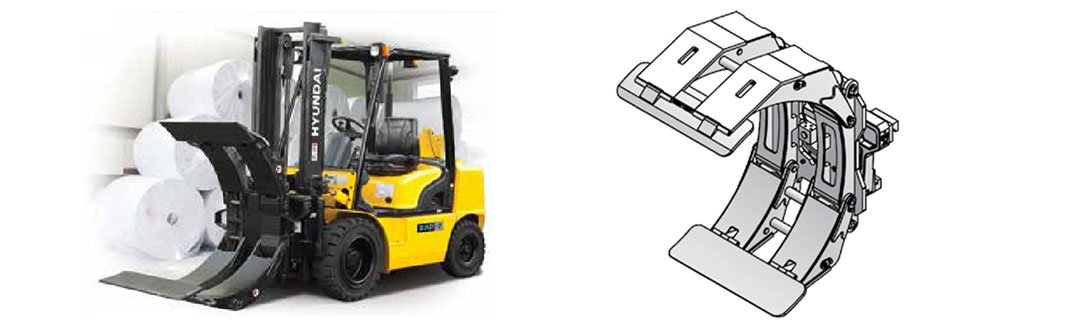

Paper Roll Clamp

Paper Roll Clamp

  • Functions

    Clamping and rotating round shaped cargoes for transportation, unloading and loading.

  • Application

    Loading and unloading of cargo of roll type at paper mill, printing house and newspaper company.

  • Type

    360°rotating type (both-side opening type and single-side opening type), and 180° static type.

  • Specifications (Both-side opening type)

Applicable
forklift truck(ton)		Loading capacity(kg)Opening range (mm)Arm width(mm)Weight(kg)
1.5 / 1.8852 / 1,078250 ~ 1,150700559
2.0 / 2.51,228 / 1,602250 ~ 1,150700559
3.01,687250 ~ 1,350800820
3.52,116 / 2,486260 ~ 1,5201,000910
4.52,539260 ~ 1,8301,000970

*The opening range of the each applicable forklift truck is recommendation.

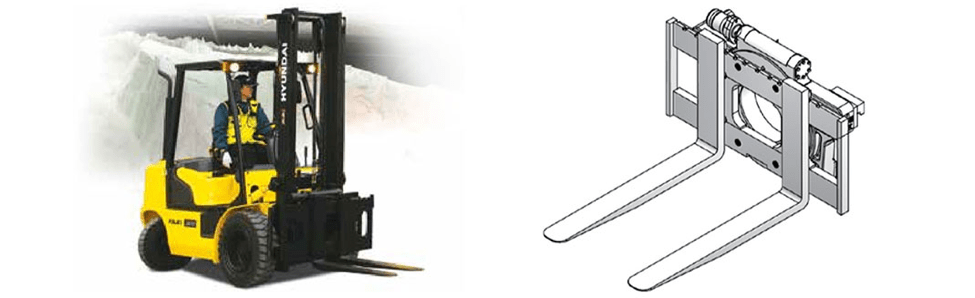

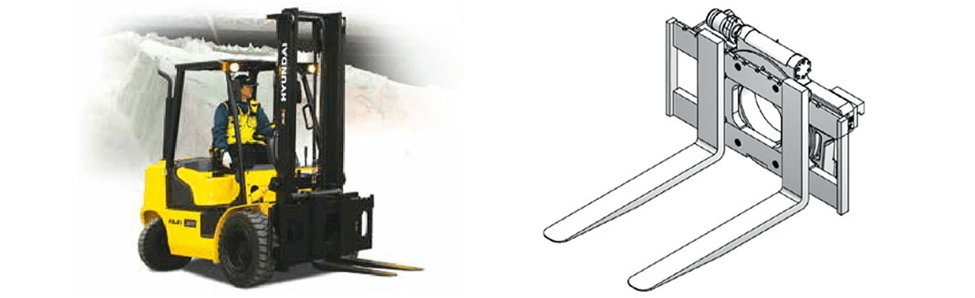

Rotating Fork

forklift and bale clamp







  • Functions

    The attachment rotates 360 degrees: A steel box (chip box) is rotated to pour cargo. Also, pallet work is allowed as done by common forklift truck.

  • Application

    Unloading and transportation of fluid (liquid) cargo at waste processing company, feeds company, food factory and foundry.

  • Type

    Standard type, shift type

  • Specifications (Standard type)

Applicable
forklift truck(ton)		Loading capacity(kg)Maximum widening width of
external fork (mm)		Weight(kg)
2.2 / 3.01,388 / 1,7991,020305
3.02,2091,060320
3.5 / 4.02,844 / 3,2951,300348
4.53,3431,600573
5.0 / 7.03,583 / 5,2381,600573

*Be cautious for safety accident if fork fixing devices are not installed.

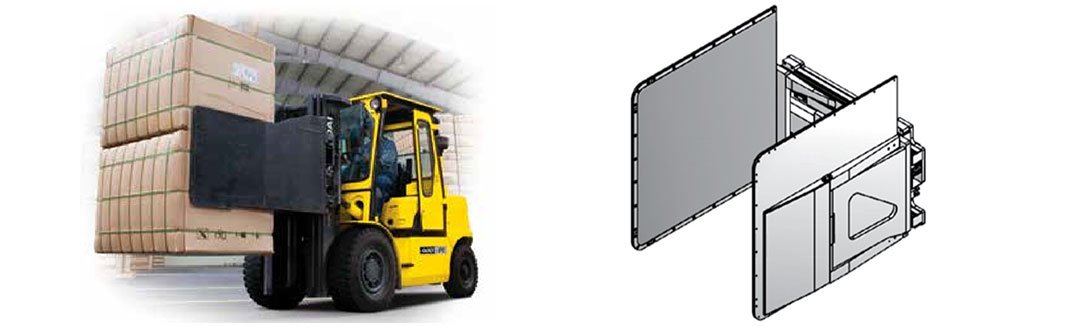

Carton Clamp

catoon clamp







  • Functions

    The wide arms clamp cargo on the sides and transport the cargo.

  • Application

    Handling cargo vulnerable to impact or pressure such as boxed cargo such as electronic products and confectionery.

  • Type

    Synchronize, independent

  • Specifications (Standard type)



Applicable
forklift truck(ton)		Loading capacity(kg)Opening range (mm)Arm length x height (mm)Weight(kg)
1.5 / 1.8865 / 1,150600 ~ 1,8001,200 X 1,000510
2.0/2.51,380 / 1,820600 ~ 1,8001,200 X 1,400510
3.02,320600 ~ 1,8001,200 X 1,400520

*The opening range and arm size are adjustable

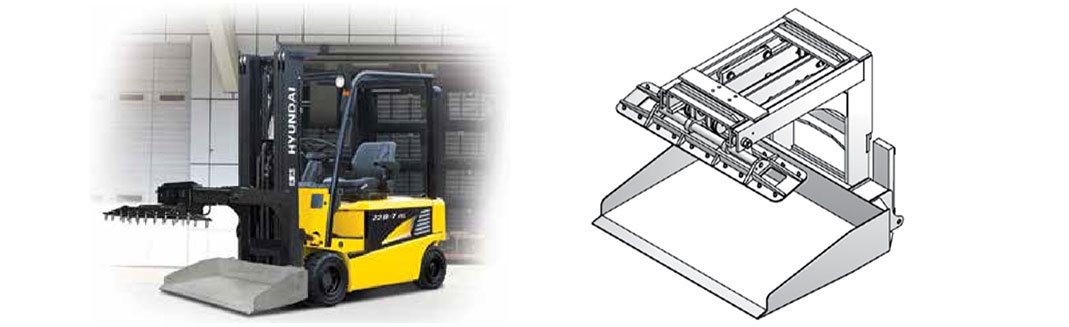

Ice Clamp

Ice Clamp







  • Functions

    The attachment is used for taking out ice lump from ice warehouse. The boom of the mast structure of forklift truck is extended long forward, and the pins of the clamp portion clamp ice lump to take out.

  • Application

    Ice factory and other company

  • Type

    Standard type (typically mounted on electric forklift truck)

  • Specifications (Standard type)

Applicable
forklift truck
(ton)		Loading capacity
(kg)		Forward & backward
withdrawing stroke
(mm)		Clamping tilting angle
(degree)		Bucket
(width x length x height)
(mm)		Weight
(kg)
2.2 / 3.01,030 / 1,500500451,350 X 1,000 X 220750
3.0 / 3.21,980 / 2,110500451,350 X 1,000 X 220750

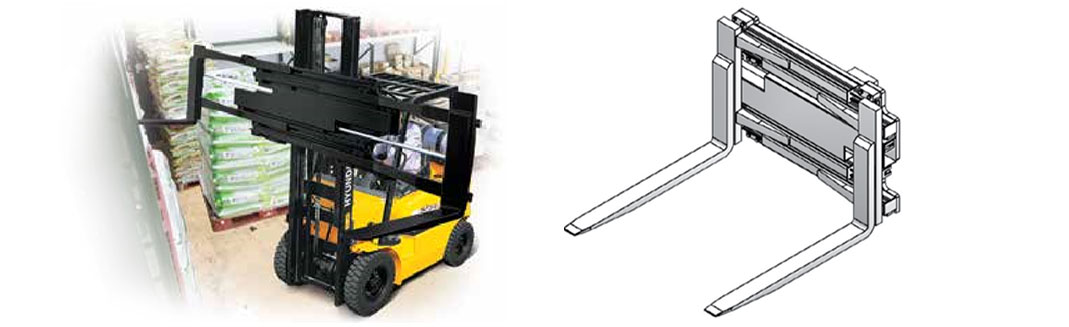

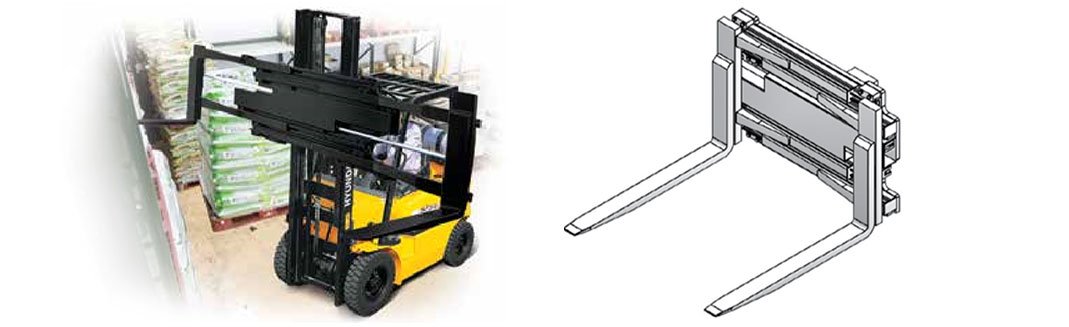

Fork Clamp

Fork Clamp







  • Functions

    The attachment is mounted on forklift truck for clamping work. The device is capable of clamping various products by adjusting the gap between the forks.

  • Application

    Handling steel cargo, textile products and long cargo.

  • Type

    Synchronize, independent, and rotating type. (2- and 4-fork clamp types)

  • Specifications (Independent type; 2-fork clamp)



Applicable
forklift truck(ton)		Loading capacity(kg)Opening range (mm)Weight(kg)
2.2 / 3.01,390 / 1,745600 ~ 1,800450
3.02,149600 ~ 1,800450
3.5 / 4.02,665 / 3,096600 ~ 2,200650
4.53,337600 ~ 2,200650

*Opening range can be adjustable by considering the length of the forks

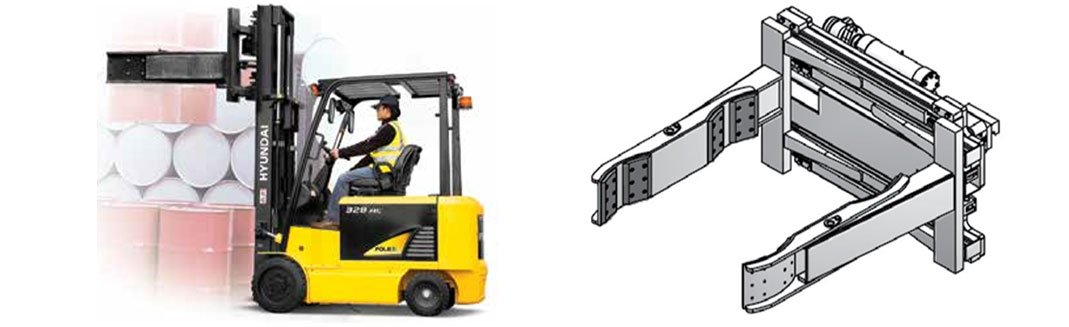

Pallet Invert Load Push

drum clamp





  • Functions

    The arms shapen drums operate on both sides. The clamp is capable of handling one, two or four drums simultaneously dependent upon application.

  • Application

    Handling cargos of drums or similar cylindrical containers. (e.g., petrochemical products, paints, inks and adhesives)

  • Type

    Rotating

  • Specifications (Standard type)



Applicable
forklift truck(ton)		Widening width
(mm)		Arm(mm) Clamp Stroke(O) Clampting Time(sec)No. of
drums		Weigth
(kg)
HeightLengthLeftRightOpenClose
2.2 / 3.0450 ~ 1,6502151,000 600600 3.53.04575
3.5 ~ 4680 ~ 2,2005401,200 760760 4.54.54960
4.5680 ~ 2,2005401,200 760760 4.54.54960
